Cost Optimized Silicon Carbide Ballistic Tile NIJ Level III 100x100x8mm SiC Armor Plate
Dettagli:
| Luogo di origine: | Hunan, Cina |
| Marca: | High Broad |
| Certificazione: | ISO 9001:2015, NIJ 0101.06 |
| Numero di modello: | sì, piastrelle |
| Documento: | SIC Ballistic Armor Tiles-P...ad.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 200 kg |
|---|---|
| Prezzo: | USD20.00-40.00/kg |
| Imballaggi particolari: | Imballato sfuso in vassoi di schiuma EPE (25 piastrelle per vassoio) + cassa di compensato per espor |
| Tempi di consegna: | 5-7 giorni lavorativi per stock, 10-15 giorni per produzione |
| Termini di pagamento: | T/T,L/C,Western Union |
| Capacità di alimentazione: | 80000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Resistenza alla flessione: | 350-420MPa | Dimensione piastrella: | 100x100mm |
|---|---|---|---|
| Resistenza alla frattura: | 3,2-4,2 MPa·m½ | Spessore: | 8,0 mm |
| Densità areale: | ≤36 kg/m² | Densità: | 3,08-3,18 g/cm³ |
| Evidenziare: | Cost Optimized SiC Tile,Bulk Supply Ballistic Ceramic,NIJ III Industrial Grade Plate |
||
Descrizione di prodotto
NIJ Level III | Industrial Grade | High Volume Production | Competitive Pricing
- High Volume Capability
- 80k Pieces/Month
- Batch Consistency Guaranteed
Our cost-optimized industrial grade SiC tile is purpose-built for high-volume armor programs. By utilizing industrial-grade SiC feedstock and our high-throughput atmospheric sintering line, we have narrowed the price gap between SiC and Al₂O₃ to within 15-25%—while delivering 70% higher hardness and 15-20% lower areal density.
For programs currently specifying Al₂O₃ tiles, upgrading to our cost-optimized SiC means better protection with minimal budget impact. For programs using B₄C, it represents an opportunity to reduce ceramic material costs by 50-60% while maintaining protection integrity.
| Material | Approx. Cost/Tile | Cost per 1000 Units | Savings vs Al₂O₃ Hardness Bonus |
|---|---|---|---|
| HB SiC (CG Grade) | $12-$22 | $12,000-$22,000 | +70% Hardness |
| Al₂O₃ (Standard) | $10-$18 | $10,000-$18,000 | Baseline |
| B₄C (Hot Pressed) | $35-$60 | $35,000-$60,000 | 3x Cost |
Our dedicated SiC armor tile production line can deliver up to 80,000 standard tiles per month with 15-day lead time for production orders, ensuring reliable supply for large-scale programs.
Every production batch undergoes SPC monitoring of key parameters (density, hardness, dimensions). Certificate of Analysis (CoA) provided with each shipment for full traceability.
Industrial-grade SiC powder with controlled particle size distribution ensures consistent sintering behavior and mechanical properties across production batches—critical for certified armor programs.

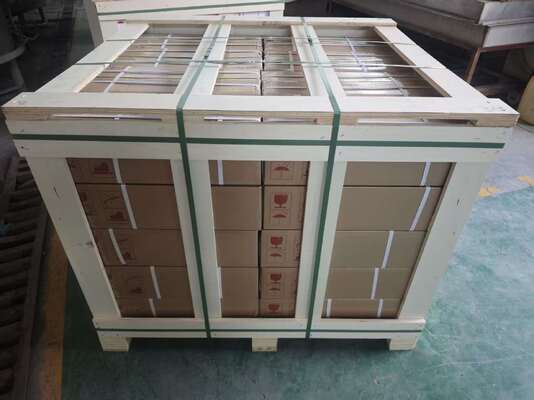

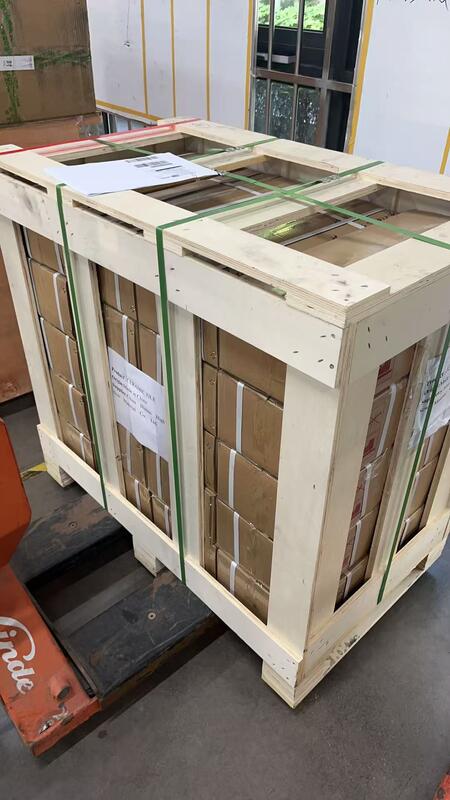

Available in 25-tile EPE foam trays or custom packaging configurations. Vacuum-sealed moisture barrier bags available for long-term storage requirements.
Upgrade your armor program to SiC—request a volume quote today
Email: janehu@hbnewmaterial.com | Batch samples available for evaluation
