150x150mm Large Format Silicon Carbide Ballistic Tile with NIJ Level III Protection and Pressureless Sintered SiC Strike Face Plate
Dettagli:
| Luogo di origine: | Hunan, Cina |
| Marca: | High Broad |
| Certificazione: | ISO 9001:2015, NIJ 0101.06 |
| Numero di modello: | sì, piastrelle |
| Documento: | SIC Ballistic Armor Tiles-P...ad.pdf |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1000 pezzi |
|---|---|
| Prezzo: | USD 0.1-1 / Piece |
| Imballaggi particolari: | Distanziatore in schiuma EPE + sacchetto antistatico sigillato sotto vuoto + custodia in compensato |
| Tempi di consegna: | 5-7 giorni lavorativi per stock, 15-20 giorni per produzione |
| Termini di pagamento: | T/T,L/C,Western Union |
| Capacità di alimentazione: | 2000000 pezzi al mese |
|
Informazioni dettagliate |
|||
| Resistenza alla flessione: | 380-450MPa | Dimensione piastrella: | 150x150 mm |
|---|---|---|---|
| Densità areale: | ≤37 kg/m² | Resistenza alla frattura: | 3,5-4,5 MPa·m½ |
| Spessore: | 8,0 mm | Densità: | 3,10-3,15 g/cm³ |
| Evidenziare: | Large Format SiC Tile,Reduced Seam Strike Face,NIJ III Large Ceramic Plate |
||
Descrizione di prodotto

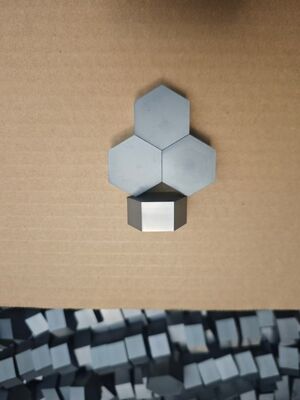

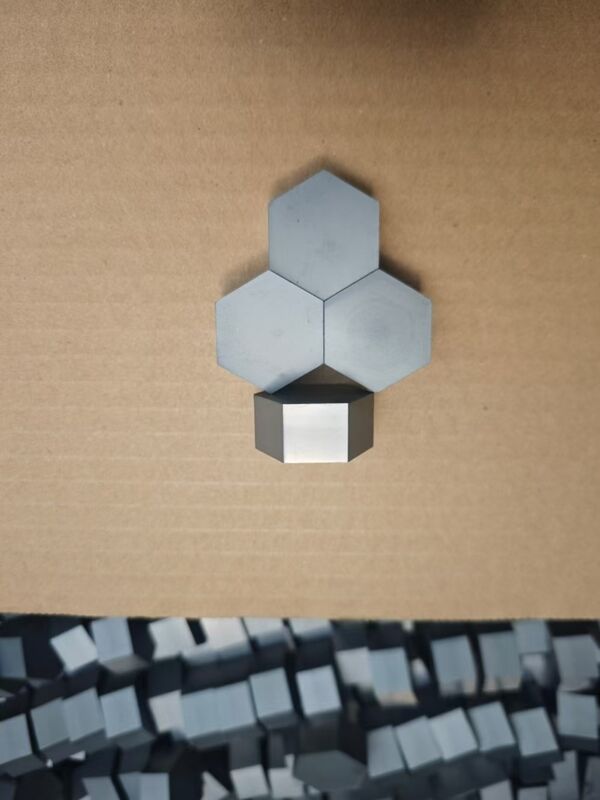

Large Format Silicon Carbide Ceramic Ballistic Tile Strike Face Plate NIJ Level III Protection 4.1 x 30mm Hex Shape SIC Tile
Large Format 150x150mm SiC Ballistic Strike Face Tile
NIJ Level III | 55% Fewer Seams | Enhanced Structural Integrity
- 150x150mm Format
- Reduced Seam Density
Why Larger Tiles Matter
In ceramic armor systems, seams between tiles represent the most vulnerable zones. Our 150x150mm large format tile covers 2.25x the area of a standard 100x100mm tile, reducing total seam length per square meter by approximately 55%. This directly translates to fewer weak points and a more structurally coherent strike face.
Large format SiC is technically achievable through pressureless sintering—unlike large format B4C which requires complex and expensive hot-press tooling, making our SiC tiles the practical choice for large-area protection.
Seam Density Comparison
| Tile Size | Tiles per m² | Seam Length per m² | Seam Reduction |
|---|---|---|---|
| HB 150x150mm | ~44 tiles | ~13.3 linear meters | Benchmark (Best) |
| Standard 100x100mm | ~100 tiles | ~20.0 linear meters | +50% more seams |
| Small 50x50mm | ~400 tiles | ~40.0 linear meters | +200% more seams |
Fewer Assembly Steps
Larger tiles mean 56% fewer pieces to handle per square meter, significantly reducing assembly labor and adhesive consumption in composite panel manufacturing.
Vehicle Armor Applications
The 150x150mm format is optimized for vehicle armor panels where large continuous coverage areas benefit most from reduced seam density and simplified installation.
B4C Large Format: Prohibitively Expensive
Hot-pressing B4C tiles larger than 100x100mm requires massive press tooling and yields high scrap rates due to thermal stress cracking. SiC pressureless sintering enables large format production at 40-50% lower cost.
Precision Edge Grinding
All edges are diamond-ground to ±0.3mm dimensional tolerance with 0.3mm x 45° chamfer, ensuring consistent gap spacing for professional composite lamination results.
Reduce seams, improve protection—order large format SiC tiles today
Email: janehu@hbnewmaterial.com
Custom dimensions up to 200x200mm available
Custom dimensions up to 200x200mm available
