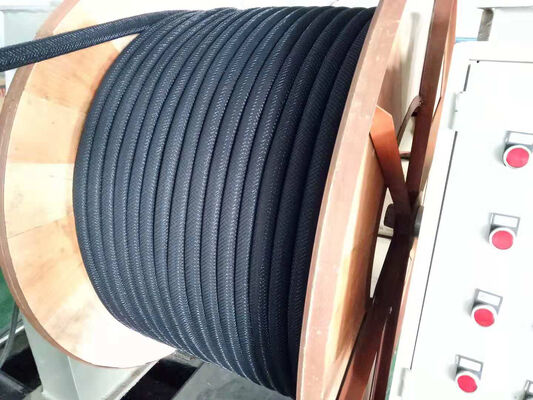

Multi Cable Option HMWPE XLPE Kynar MMO Linear Anode Selectable Insulation for Soil Chemistry Matching
Dettagli:
| Luogo di origine: | Cina |
| Marca: | High Broad or OEM |
| Certificazione: | ISO 9001, ASTM B348 |
| Numero di modello: | MMO-CS-008 |
|
Informazioni dettagliate |
|||
| tipo di anodo: | Anodo lineare MMO selezionabile via cavo | Opzioni cavo: | HMWPE / XLPE-PVC / Kynar-HMWPE |
|---|---|---|---|
| Supporto alla selezione: | Revisione gratuita dell'analisi del suolo | Valutazione HMWPE: | pH 5-9, < 75°C |
| Classificazione XLPE/PVC: | pH 3-12, < 90°C | Valutazione Kynar/HMWPE: | pH 2-14, resistente agli agenti chimici |
| Evidenziare: | Anodo lineare MMO multicavo,Cavo CP HMWPE XLPE Kynar,Anodo di isolamento corrispondente al suolo |
||
Descrizione di prodotto
Cable-Selectable MMO Linear Anode System
One anode design does not fit all soil conditions. Our cable-selectable MMO linear anode system allows engineers to match cable insulation to site-specific soil chemistry, maximizing system life and reliability without over-specifying.
Cable Selection Guide
| Insulation | Best For | Limitations |
|---|---|---|
| HMWPE | Standard buried service, neutral to mildly acidic soils (pH 5-9), general moisture resistance | Not recommended for organic solvent exposure or temperatures above 75°C |
| XLPE/PVC | Higher temperature soils (up to 90°C), wet environments, good chemical resistance | PVC outer layer may degrade in highly alkaline soils (pH > 12) |
| Kynar/HMWPE | Aggressive chemical environments, acidic soils (pH 2-5), refinery and chemical plant sites | Higher cost; specify only when required by soil chemistry |
Selection Support
We provide complimentary soil analysis review — send your site soil resistivity and chemistry data, and our engineering team recommends the optimal cable configuration. No charge, no obligation.
The anode core (MMO/Ti wire, coke backfill, splice connections) remains identical across all cable options, ensuring consistent CP performance regardless of cable selection.
Applications
- Projects with variable soil conditions along route
- Sites requiring cost-optimized cable specification
- Retrofit projects with known soil chemistry history
