Subsea MMO Ti Linear Anode HMWPE Cable Coke Backfill for Offshore Platform Jacket CP System
Dettagli:
| Luogo di origine: | Cina |
| Marca: | High Broad or OEM |
| Certificazione: | ISO 9001, DNV Available |
| Numero di modello: | MMO-MR-007 |
|
Informazioni dettagliate |
|||
| tipo di anodo: | Anodo lineare MMO/Ti sottomarino | Cavo: | HMWPE con elementi blocca-acqua |
|---|---|---|---|
| riempia: | Coke calcinato resistente al cloruro | Giacca esterna: | Stabilizzato ai raggi UV, antivegetativo |
| Valutazione di immersione: | Acqua di mare continua | Rilo: | Acciaio inossidabile di grado marino con alette di sollevamento |
| Evidenziare: | Anodo CP lineare MMO sottomarino,Protezione della giacca della piattaforma offshore,Anodo di corrente marine impressa |
||
Descrizione di prodotto

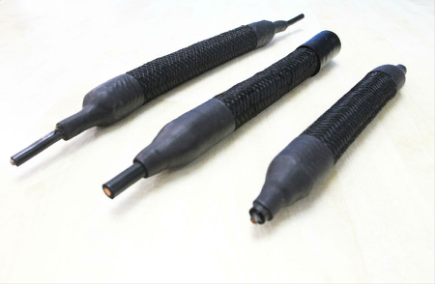

Subsea MMO/Ti Linear Anode for Offshore CP
Specifically engineered for the demanding subsea environment, this MMO/Ti linear anode provides reliable impressed current cathodic protection for offshore platform jackets, subsea pipelines, and marine structures with continuous seawater immersion capability.
Marine-Grade Engineering

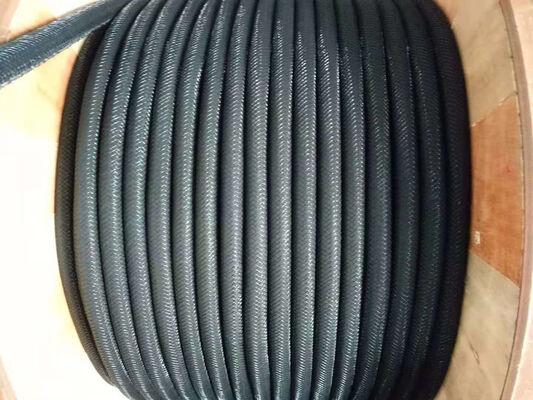

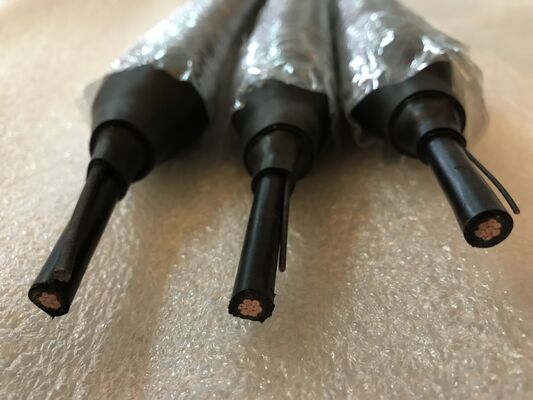

Water-Blocked Cable: HMWPE insulation with longitudinal water-blocking elements prevents water migration along the conductor in the event of jacket damage — critical for subsea reliability where repairs are extremely costly.
Seawater-Rated Backfill: Specially processed calcined petroleum coke with enhanced chloride resistance, preventing degradation from continuous seawater ion exposure while maintaining low resistivity.
UV-Stabilized Outer Jacket: For splash zone and above-water portions, the outer jacket incorporates UV stabilizers preventing polymer degradation from tropical sunlight exposure during platform installation phases.
Biofouling Resistance: Smooth jacket surface with anti-fouling properties minimizes marine growth accumulation that could shield the anode from the electrolyte.
Installation Support
Supplied on marine-grade stainless steel reels with lifting lugs for offshore crane handling. Installation supervision available for complex subsea deployments.
Applications
- Offshore platform jacket CP
- Subsea pipeline protection
- Jetty and pier structure CP
- FPSO hull protection
