Industrial Magnesium Anode Rod with MgMnAlZn Alloy for Welding Applications in Customizable Shapes
Dettagli:
| Luogo di origine: | Hunan, Cina |
| Marca: | High Broad |
| Certificazione: | ASTM G-97, ISO, DNV |
| Numero di modello: | Cavi di magnesio |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|---|
| Prezzo: | $50 |
|
Informazioni dettagliate |
|||
| Composizione chimica: | Mg | Materiale: | lega di magnesio |
|---|---|---|---|
| Forma: | barra asta, quadrata, forma D, cilindro, barra, asta, nastro | Materiale chimico: | MgMnAlZn |
| Diametro: | 8 mm | Ordine minimo: | 100 chilogrammi |
| Capacità di alimentazione: | 300 tonnellate metriche/tonnellate metriche al mese | Tempi di consegna: | 20-30 giorni |
| Confezione: | Su pallet con fasci di acciaio | Tensione a circuito aperto: | 1,50-1,55 V (basso potenziale), 1,70-1,75 V (alto potenziale) |
| Tensione di circuito chiuso: | 1,45-1,5 V (basso potenziale), 1,57-1,62 V (alto potenziale) | Capacità effettiva: | ≥1.105 AH/G (basso potenziale), ≥1.100 AH/G (alto potenziale) |
| Efficienza attuale: | ≥50% | Intervallo di peso: | Da 1,4 kg a 27,2 kg |
| Dimensioni: | Varia in base al modello (vedi tabelle delle specifiche) | ||
| Evidenziare: | MgMnAlZn alloy Magnesium Anode Rod,Welding application Magnesium Sacrificial Anode,Customizable shapes Industrial Magnesium Rod |
||
Descrizione di prodotto

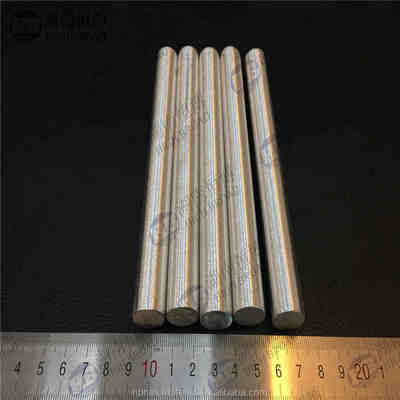

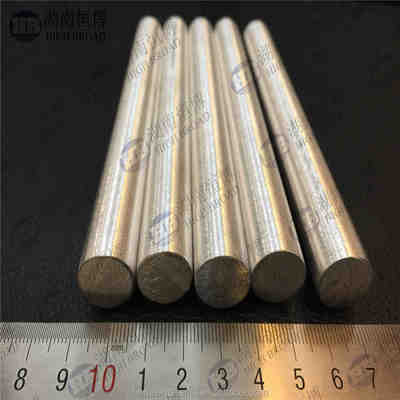

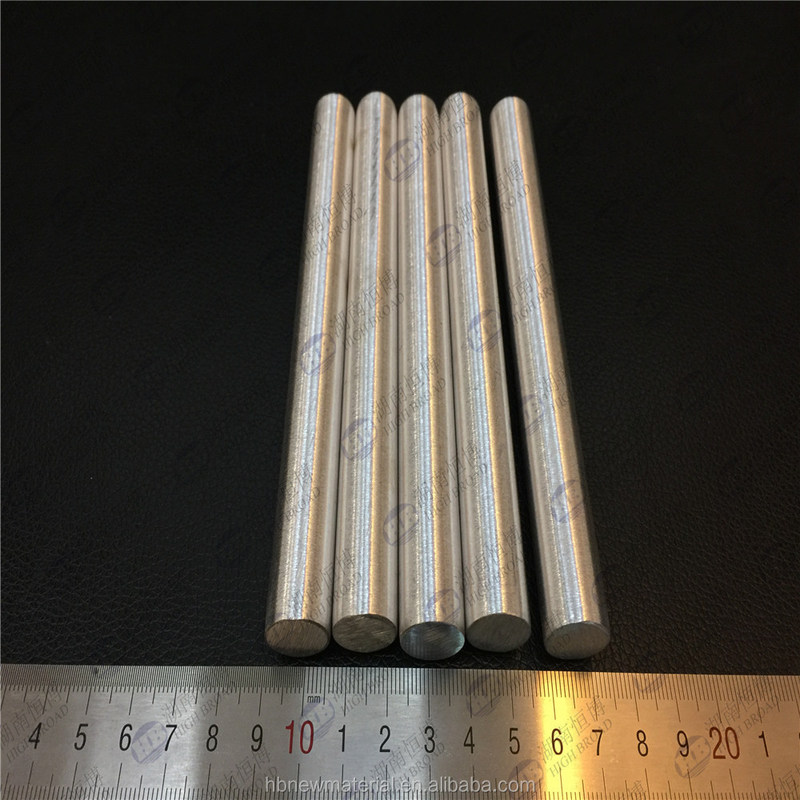

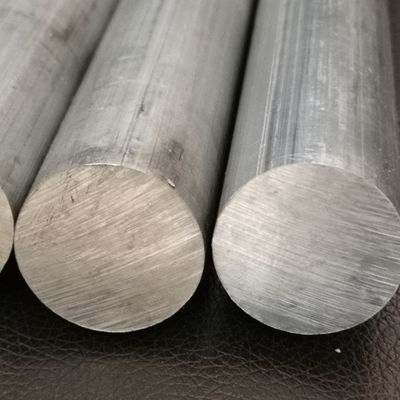

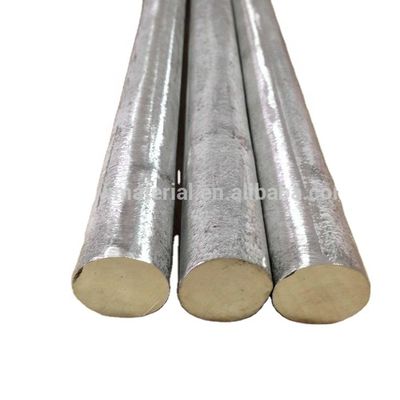

High-quality magnesium alloy rods designed for welding applications, offering excellent anti-corrosion properties and cathodic protection.
| Item Number | MIC, High potential, AZ63C, AZ31 |
| Features | Anti-corrosion/Cathodic protection |
| Materials | Magnesium alloy |
| Shape | Square, D shape, Cylinder, Bar, Rod, Ribbon |
| Standards | American standard, ASTM G-97 |
| Certificates | ASTM G-97, ISO, DNV |
| Place of Origin | China |
Magnesium anodes are used in:
- Ship equipment and building construction
- Port construction and sea projects
- Underneath pipeline protection
- Petroleum chemical fields
- Water boilers, heat exchangers, evaporators
They provide water softening, dirt removal, and extend container working life.
| Minimum Order QTY | 100 Kilograms |
| Payment Terms | L/C, T/T for bulk order, Western Union and Paypal for samples |
| Supply Ability | 300 Metric Ton/Metric Tons per Month |
| Delivery Time | 20 FCL: 20-30 Days (Depends on quantity) |
| Packaging details | On pallet with steel bundles |
| Element | High potential | AZ63B | AZ63C | AZ63D |
|---|---|---|---|---|
| Al | <0.01 | 5.30-6.70 | 5.30-6.70 | 5.0-7.0 |
| Zn | --- | 2.50-3.50 | 2.50-3.50 | 2.0-4.0 |
| Mn | 0.5-1.30 | 0.15-0.70 | 0.15-0.07 | 0.15-0.70 |
| Si (max) | 0.05 | 0.10 | 0.30 | 0.30 |
| Cu (max) | 0.02 | 0.02 | 0.05 | 0.10 |
| Ni (max) | 0.001 | 0.002 | 0.003 | 0.003 |
| Fe (max) | 0.03 | 0.005 | 0.005 | 0.005 |
| Others each | 0.005 | --- | --- | --- |
| Others total | 0.30 | 0.30 | 0.30 | 0.30 |
| Mg | Balance | Balance | Balance | Balance |
| Model | Weight Kg (LB) | Specification of Anodes Inch (mm) | ||
|---|---|---|---|---|
| A | B | C | ||
| 3S3 | 1.4(3) | 3(76.2) | 3(76.2) | 4.5(114.3) |
| 5S3 | 2.3(5) | 3(76.2) | 3(76.2) | 7.5(190.5) |
| 9S2 | 4.1(9) | 2(50.8) | 2(50.8) | 27(685.8) |
| 17S2 | 7.7(17) | 2(50.8) | 2(50.8) | 51(1295.4) |
| 17S3 | 7.7(17) | 3(76.2) | 3(76.2) | 25.5(647.7) |
| 20S2 | 9.1(20) | 2(50.8) | 2(50.8) | 60(1524.0) |
| 32S3 | 14.5(32) | 3(76.2) | 3(76.2) | 45(1143.0) |
| 32S5 | 14.5(32) | 5(127.0) | 5(127.0) | 21(533.4) |
| 40S3 | 18.1(40) | 3(76.2) | 3(76.2) | 60(1524.0) |
| 48S5 | 21.8(48) | 5(127.0) | 5(127.0) | 31(787.4) |
| 60S4 | 27.2(60) | 4(101.6) | 4(101.6) | 60(1524.0) |
| 9S3 | 4.1(9) | 3(76.2) | 3(76.2) | 13.5(342.9) |
| Model | Weight Kg (LB) | Specification of Anodes Inch (mm) | ||
|---|---|---|---|---|
| A | B | C | ||
| 9D2 | 4.082(9) | 2 3/4(69.9) | 3(76.2) | 21 5/8(549.3) |
| 14D2 | 6.350(14) | 2 3/4(69.9) | 3(76.2) | 33 1/2(850.9) |
| 20D2 | 9.072(20) | 2 3/4(69.9) | 3(76.2) | 47 3/4(1212.9) |
| 9D3 | 4.08(9) | 3 1/2(88.9) | 3 3/4(95.3) | 13 7/8(352.4) |
| 17D3 | 7.711(17) | 3 1/2(88.9) | 3 3/4(95.3) | 25 1/4(641.4) |
| 32D5 | 14.515(32) | 5 1/2(139.7) | 5 3/4(146.1) | 19 7/8(504.8) |
| 48D5 | 21.772(48) | 5 1/2(139.7) | 5 3/4(146.1) | 30 1/8(765.2) |
| 1.5Kg | 1.5(3.5) | 3 3/20(80.0) | 2 3/4(70.0) | 7 1/2(190.0) |
| 2.5Kg | 2.5(5.5) | 3 3/20(80.0) | 2 3/4(70.0) | 11 4/5(300.0) |
| Model | Open-circuit voltage (-v) | Close-circuit voltage (-v) | Actual capacitance (A.H/G) | Current efficiency (%) |
|---|---|---|---|---|
| Mg anode with low potential AZ63 | 1.50-1.55 | 1.45-1.5 | ≥1.105 | ≥50 |
| Mg anode with high potential Mg-Mn | 1.70-1.75 | 1.57-1.62 | ≥1.100 | ≥50 |
We are a professional anode supplier with over 16 years of experience, specializing in:
- Zinc anodes (ASTM B418-95 US MILL 18001K)
- Al-Zn-In anodes (GAIII)
- Magnesium anodes (ASTM-G97)
- High silicon cast iron anodes (ASTM-A518-3, BS1591)
Our products are shipped worldwide, with about 5000 metric tons annually. We maintain strict quality control with independent third-party testing in the USA. With direct access to raw material resources, we offer competitive pricing and can customize anodes according to your specifications.
Materials contents (Chemical Compositions) and the size of models. Special structures with drawing. Quantity and delivery trade items.
Welcome to visit us in China. Hopefully it will be a happy journey here.
Quality is the foundation of our company. We have been working in new materials industry for more than 20 years.
Magnesium anodes are used in the technical method of electrochemistry cathode protection. The theory is that when connected with the protected metal body, with the exhausting and dissolving of negative metal material or alloy, the protective current body will be protected from corrosion. Mg anode can produce higher quality potential power, making it ideal sacrificial material.
