ISO9001:2008 Certified Sacrificial Aluminum Bracelet Anode for Galvanic Corrosion Protection with GB/T 4948-2002 Standard
Dettagli:
| Luogo di origine: | Hunan, Cina |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 100 |
|---|---|
| Prezzo: | $9-20 |
|
Informazioni dettagliate |
|||
| Composizione chimica: | Al | Materiale: | Alluminio |
|---|---|---|---|
| Contenuto di Al: | Leghe di alluminio | Tipo in lega: | Leghe di Al-Zn-In |
| Contenuto dello Zn: | 2,5-7,0% | Nel contenuto: | 0,018-0,050% |
| Contenuto del CD: | 0,005-0,020% | Contenuto Sn: | 0,018-0,075% |
| Contenuto di mg: | 0,50-1,50% | Contenuto di si: | 0,10-0,15% |
| Contenuto del Ti: | 0.01-0.08% | Tensione a circuito aperto: | da -1,18 a -1,10 V |
| Tensione di circuito chiuso: | da -1,12 a -1,05 V | Capacità effettiva: | ≥2400Ah/kg |
| Efficienza attuale: | ≥85% | ||
| Evidenziare: | ISO9001:2008 Certified Sacrificial Aluminum Anode,GB/T 4948-2002 Standard Aluminum Bracelet Anode,Galvanic Corrosion Protection Aluminum Alloy Anode |
||
Descrizione di prodotto

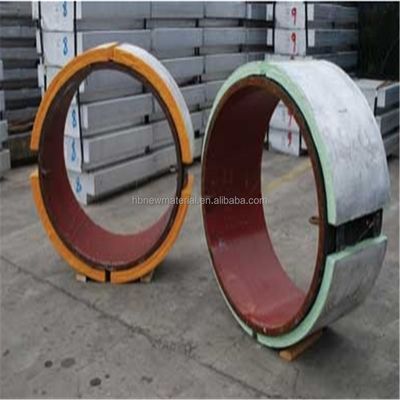

Sacrificial Aluminum Bracelet Anodes for Galvanic Corrosion
Sacrificial bracelet anodes are typically made from either zinc alloy or aluminum alloy, depending on design requirements, environmental variables, and water salinity. These anodes provide cost-effective and reliable cathodic protection for submerged pipelines, which are usually coated with anti-corrosion materials and weighted with concrete for negative buoyancy.

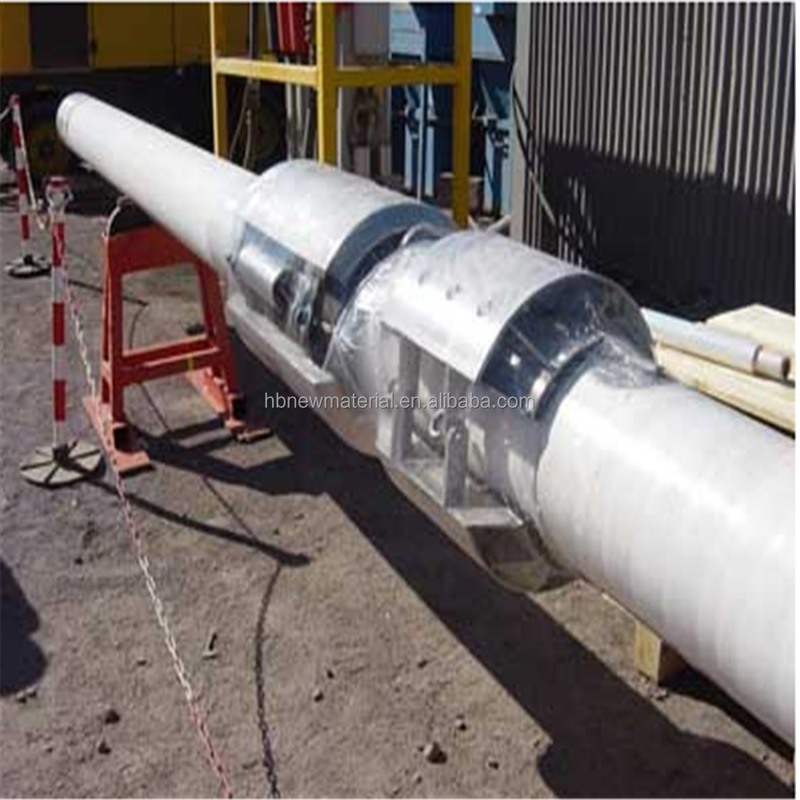

Bracelet anodes are mounted at specific locations determined by the cathodic protection system design and are electrically connected to the pipeline via special bonding copper cables. While the primary defense against corrosion is the pipeline's anti-corrosion coating, bracelet anodes protect areas where coating failures may occur during installation or operation.
Applications
These anodes are used for:
- Hull protection
- Ballast tanks
- Offshore engineering
- Harbor structures
- Sea water cooling systems
- Submerged pipelines
Chemical Composition Standards
| Type | Zn | In | Cd | Sn | Mg | Si | Ti | Impurity (less than) | Al |
|---|---|---|---|---|---|---|---|---|---|
| Al-Zn-In-Cd A11 | 2.5-4.5 | 0.018-0.050 | 0.005-0.020 | - | - | -- | - | 0.10 | Balance |
| Al-Zn-In-Sn A12 | 2.2-5.2 | 0.020-0.045 | - | 0.018-0.035 | - | - | - | 0.10 | Balance |
| Al-Zn-In-Si A13 | 5.5-7.0 | 0.025-0.035 | - | - | - | 0.10-0.15 | - | 0.10 | Balance |
| Al-Zn-In-Sn-Mg A14 | 2.5-4.0 | 0.020-0.050 | - | 0.025-0.075 | 0.50-1.00 | - | - | 0.10 | Balance |
| Al-Zn-In-Mg-Ti A21 | 4.0-7.0 | 0.02-0.050 | - | - | 0.50-1.50 | - | 0.01-0.08 | 0.10 | Balance |
Electrochemical Characteristics
| Item | Material of anodes | Open-circuit Voltage (v) | Close-circuit Voltage (v) | Actual Capacity(Ah/kg) | Current efficiency (%) | Consumption rate (kg.(A.a)) | Dissolve Performance |
|---|---|---|---|---|---|---|---|
| Electrochemical Performance | Type 1 | -1.18- -1.10 | -1.12- -1.05 | ≥ 2400 | ≥ 85 | ≤ 3.65 | The surface dissolve evenly & oxide drop easily |
| Type 2 | -1.18- -1.10 | -1.12- -1.05 | ≥ 2600 | ≥ 90 | ≤ 3.37 |
Reference electrode: Saturated calomel electrode
Type 1: A11, A12, A13, A14
Type 2: A21
Type 1: A11, A12, A13, A14
Type 2: A21
