60 Lbs Magnesium Anode For Optimal Protection And High Current Customized Life cathodic protection of buried pipelines, underground tanks, external tank bottom

Product Description:

The prepackaged magnesium anode consists of a cast magnesium anode placed in a cloth bag with a highly hygroscopic backfill. This backfill mix includes 75% gypsum, 20% bentonite, and 5% sodium sulfate. Typically, this assembly is further enclosed in a plastic bag or paper outer lining for shipping purposes, which needs to be removed before installation.

The efficiency of the anode can be significantly improved by pre-packaging it with this depolarizing backfill. The unique mixture helps reduce the anode-to-soil resistance, facilitating a smoother flow of electrical current to the intended structure.

Our magnesium anode comes with the cable and joints sealed using epoxy resin. Engineered to meet the rigorous demands of construction projects, these prepackaged magnesium anodes are commonly employed for the cathodic protection of buried metallic structures in various soil resistivities. These structures can include pipelines, underground tanks, external tank bases, and other similar applications.

Features:

Magnesium alloyed anodes are specifically created for use in buried applications. Their high driving voltage makes them particularly suitable for structures buried in soil with resistivities exceeding 2,000 ohm-cm. The effectiveness of these anodes is intensified by the fact that they are pre-packaged in a specially designed backfill. This backfill serves to reduce the anode-to-soil resistance, thereby facilitating smoother current flow to the intended structure.

Technical Parameters:

Environment-friendly Backfill

The added backfill helps to decrease the electrical resistance of the anode to the ground as well as retain moisture which allows for better efficiency and homogeneous consumption of the anode, thus creating an efficient anode bed. Our backfill is prepared with naturally degradable and recyclable materials in the following weight ratio:

• Hydrated Gypsum: 75%
• Bentonite: 20%
• Sodium Sulphate: 5%

The content of harmful elements in the backfill is below the industrial safety standards, meaning it will not introduce any pollution to the surrounding environment.

Composition of harmful elements:

• Cadmium ≤ 1 ppm
• Arsenicum ≤ 1 ppm
• Mercury ≤ 1 ppm
• Phosphorus ≤ 10 ppm

* Other specialized mixture compositions are available upon request.

Easy Installation

The prepackaged magnesium anode is appropriate for direct burial. This simplifies the on-site construction process, as some processes which traditionally took place on site (such as backfilling) are carried out in the factory prior to delivery, making for a convenient and fast installation. This helps to ensure the construction and installation quality of the anode ground bed remain consistent.

Multiple Cable Options

Our standard lead cable is 10ft. AWG #12 Solid THHN/THWN. Other options include PVC/PVC, XLPE/PVC, HMWPE or TW, which can be supplied in custom sizes, lengths and colors upon request. The cable can be connected by direct brazing, mechanical fastening or welding to ensure high pull strength and low connection resistance.

Applications:

Utilizing the highest driving voltage (most negative electro-potential) among all materials used for sacrificial anodes, the magnesium anode serves as an economical and efficient sacrificial option, particularly in soil with moderate to high resistivity levels (1,000 – 10,000 Ω·cm).

By facilitating a more convenient and appealing oxidation source, magnesium anodes work to prevent or hinder the corrosion process on steel structures to which they are connected. The bare magnesium anodes from us  find widespread application in providing cathodic protection for buried pipelines, underground tanks, external tank bottoms, and more.

Customization:

Product Customization Services:

- Brand Name: High Broad Magnesium

- Model Number: HP High potential

- Place of Origin: China

- Certification: ISO9001 / ROHS

- Minimum Order Quantity: 100 kilograms

- Price: according to order quantity

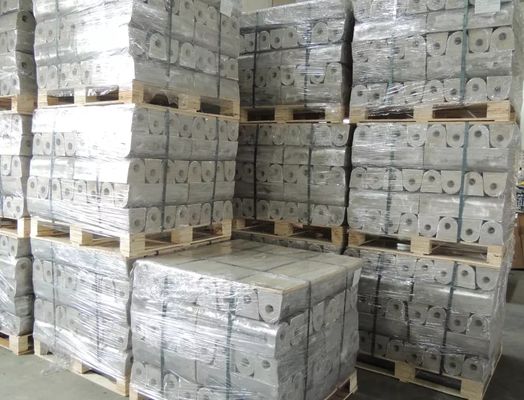

- Packaging Details: on pallet

- Delivery Time: 14 -20 days

- Payment Terms: T/T , L/C etc.

- Supply Ability: 1000 mt per month

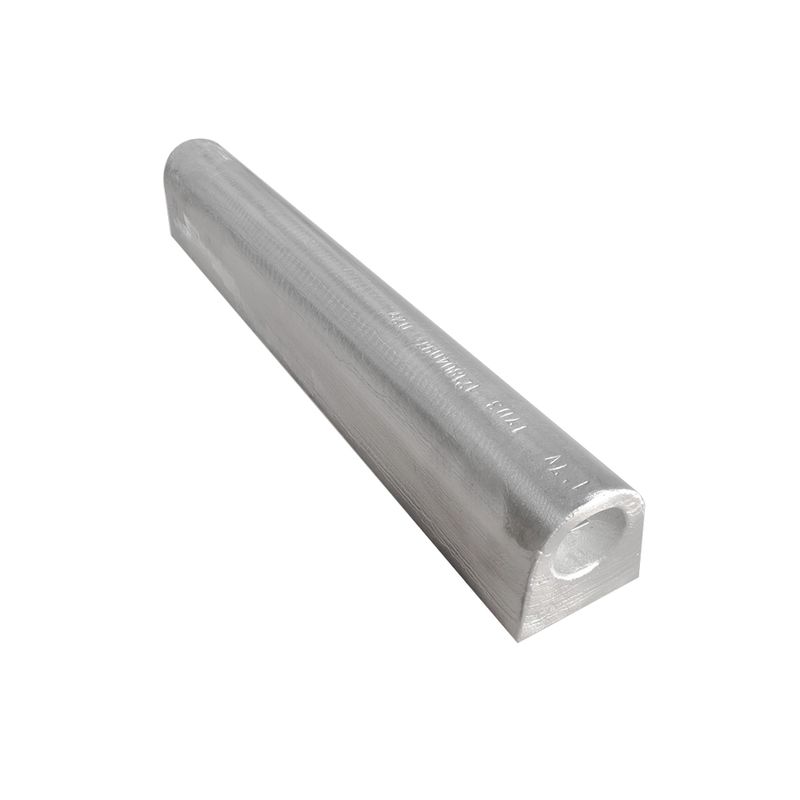

- Shape: D Trapezoid

- Voltage: 1.7 V

- Material: Magnesium Alloys MgMn M1C

- Coating: Without Coating, Silver Surface

- Keywords: M1C, 17 lbs, 32 lbs, 60 lbs backfilled anodes, Magnesium anodes, 7.7 Kgs, 14.5 kgs soil anodes

Packing and Shipping:

Product Packaging:

The Magnesium Anode product is carefully packaged in a sturdy cardboard box to ensure safe transportation and delivery. Each anode is individually wrapped in protective material to prevent scratches and damage during transit. The box is labeled with product information and handling instructions for easy identification.

Shipping:

Orders for the Magnesium Anode product are shipped using reliable courier services to guarantee timely delivery. The package is securely sealed to prevent any spills or leaks during transit. Customers will receive a tracking number to monitor the shipping progress and ensure the safe arrival of their order.

Contact:  metal@vip.163.com

FAQ:

Q: What is the brand name of this Magnesium Anode product?

A: The brand name is High Broad Magnesium.

Q: What is the model number of this Magnesium Anode product?

A: The model number is HP High potential.

Q: Where is this Magnesium Anode product manufactured?

A: This product is manufactured in China.

Q: What certification does this Magnesium Anode product have?

A: This product is certified with ISO.

Q: What is the minimum order quantity for this Magnesium Anode product?

A: The minimum order quantity is 100 kilograms.
